Categories

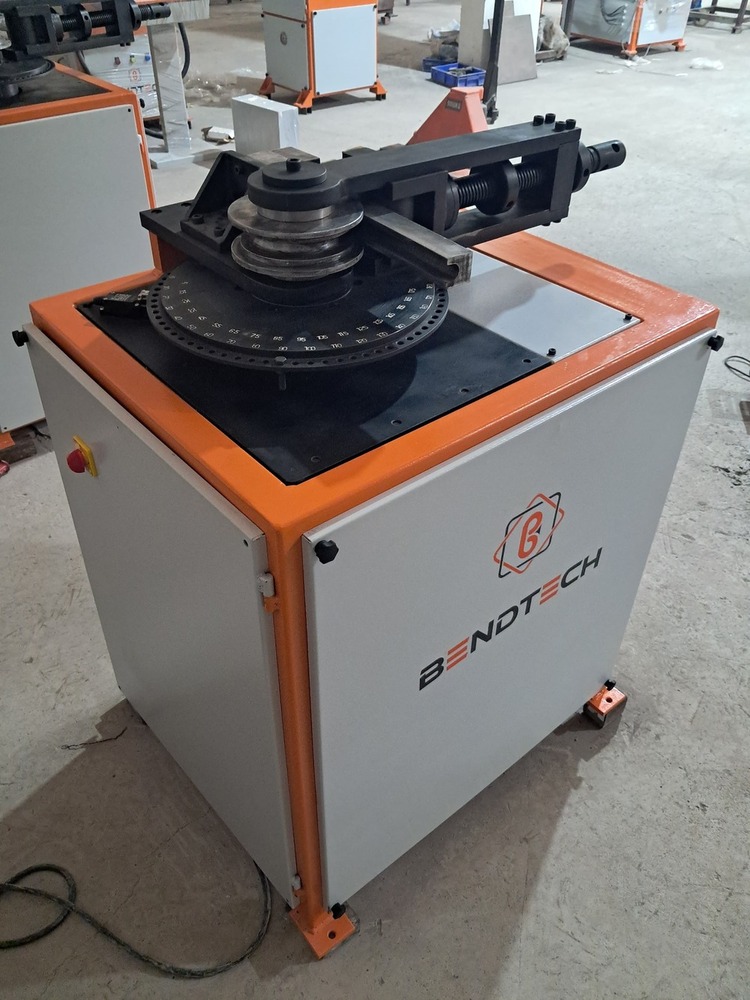

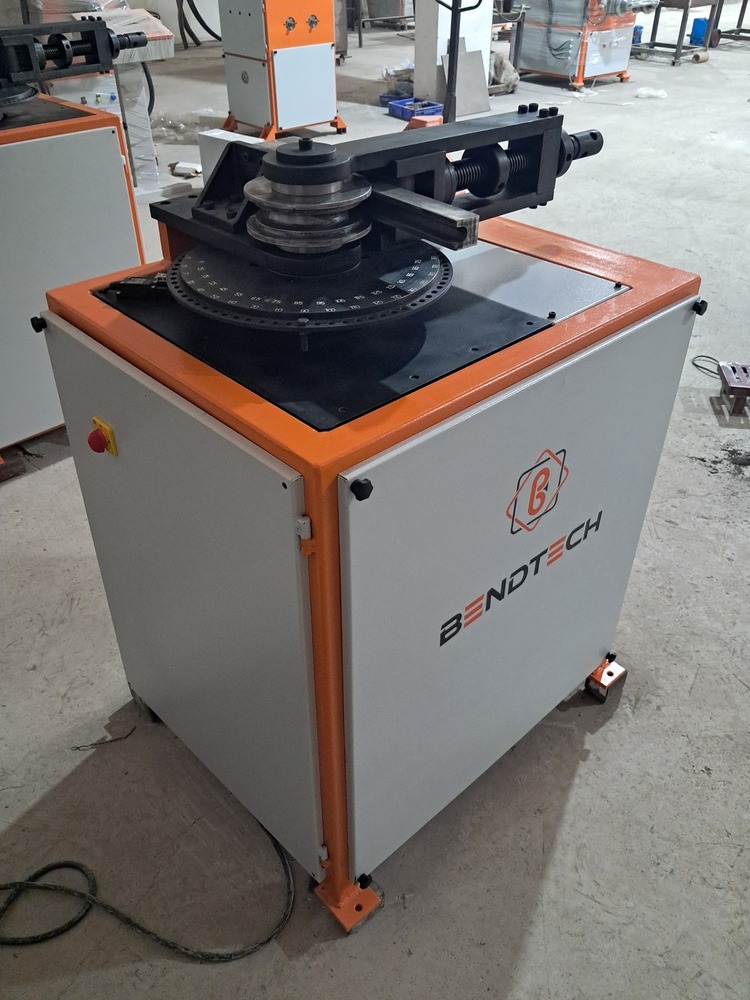

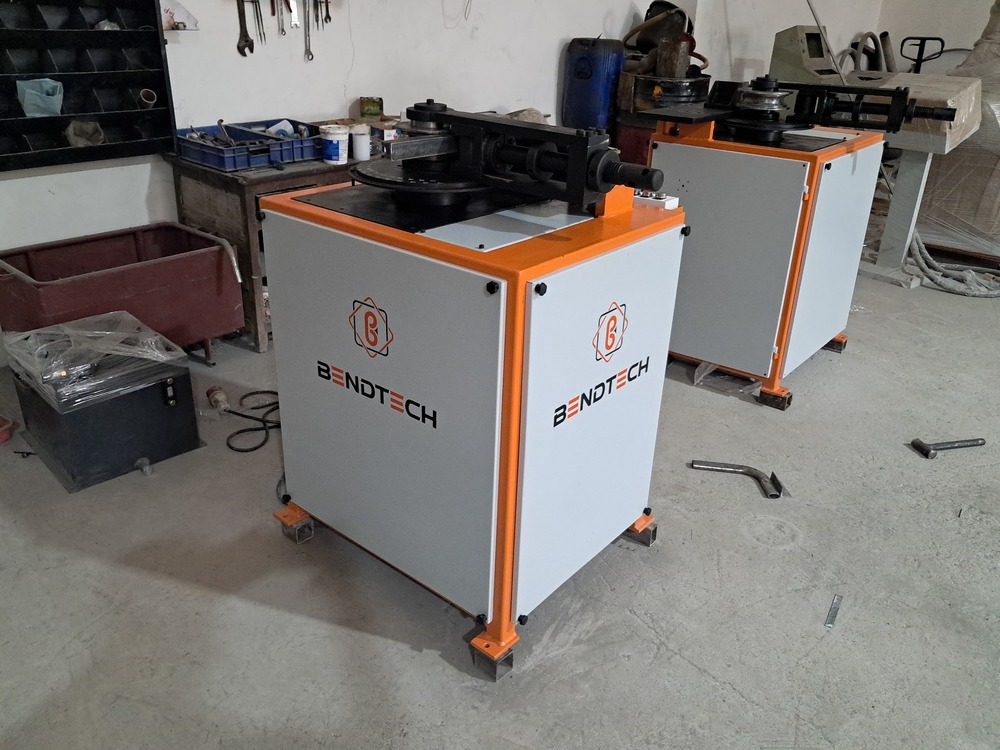

Motorized Pipe Bending Machines

Brand

BendTech Engineers (Brand Name:- BTE)

Model

BTE-MDBM

Condition

New

Raw Material

Pipe

Material / Metal Processed

carbon steel, stainless steel, copper, aluminium, galvanized, etc.

Power

Electrical

Automation

Manual

After-sales Service Provided

Engineers available to service machinery overseas

Operation

By Push button Switches

FOB port

Mundra Port(Gujarat) , Nahva sheva Port(Maharastra)

Sr No.

Details

Specification

Specification

Specification

Specification

1

Model No.

BTE-1MDBM

BTE-1.5MDBM

BTE-2MDBM

BTE-2.5MDBM

2

Pipe Diameter (mm)

UP TO 25mm

UP TO 38mm

UP TO 50mm

UP TO 63.5mm

3

Max Bending Radius(mm)

150 mm

200 mm

200 mm

200 mm

4

Pipe Size Max

25 mm

38 mm

50 mm

50 mm

5

Pipe Size Min

10mm

10mm

10mm

10mm

6

Pipe Wall Thickness

1 to 3 mm

1 to 3 mm

1 to 3 mm

1 to 3 mm

7

Pipe Material

M.S & S.S

M.S & S.S

M.S & S.S

M.S & S.S

8

Min Bending Radius

2D

2D

2D

2D

9

Max Bending Angle

180o

180o

180o

180o

10

Bending Direction

Clockwise

Clockwise

Clockwise

Clockwise

11

Bending Accuracy

 ±1.5%

 ±1.5%

 ±1.5%

 ±1.5%

12

Operating Voltage

415 V, 50 Hz, 3 Ph

415 V, 50 Hz, 3 Ph

415 V, 50 Hz, 3 Ph

415 V, 50 Hz, 3 Ph

13

Motor Power

2Hp

3Hp

5Hp

7.5Hp

14

Pipe Clamping & Dis- clamping System

By Mechanical Screw

By Mechanical Screw

By Mechanical Screw

By Mechanical Screw

15

Electronics Parts Make

Schneider

Schneider

Schneider

Schneider

16

Control Panel With Limit Switch

Yes

Yes

Yes

Yes

17

Any One Pipe Size Die Set

Complimentary With Machine

Complimentary With Machine

Complimentary With Machine

Complimentary With Machine
